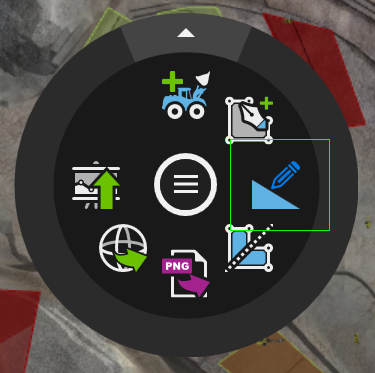

The dig blocks required to create a ramp can be designed in XECUTE. To create a ramp design click the Draw Ramp icon in the radial menu. The ramp will be created from the first drawn vertex elevation or the Starting Elevation and follow a Projection Angle along the mining direction.

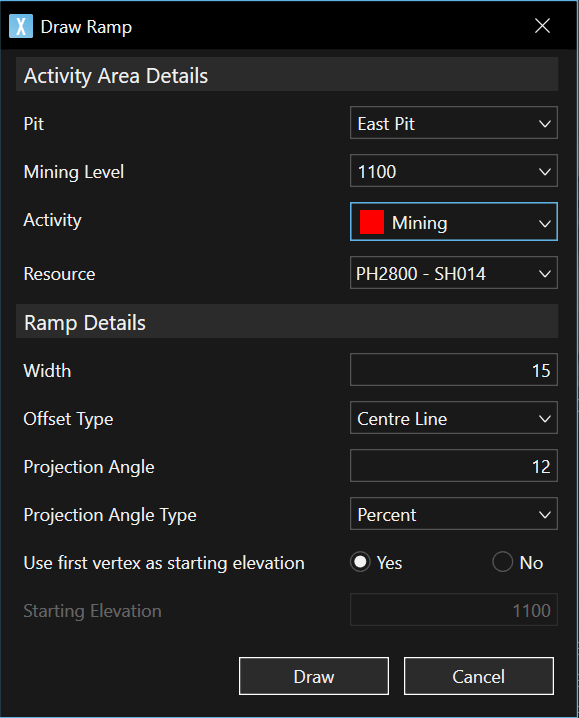

Complete the ramp design options as required.
| Field/Button | Description |
|---|---|
| Pit | The pit where ramp can be drawn. |
| Mining Level | Sets the ramp mining level that is used by XECUTE to determine the creation order of items to be reserved. |
| Activity Type | Activity type associated with the ramp. |
| Resource | Resource assigned to excavate the ramp. |
| Width | The width in site units of the ramp. |
| Offset Type |
The offset type; Centre, left or right from the drawn line. |
| Projection Angle | The angle of the ramp. |
| Projection Angle Type | Angle unit; Degrees or percent. |
| Use first vertex as starting elevation | Set the starting elevation of the ramp from the first drawn point. |
| Starting Elevation | If not using the first vertex as starting elevation, set it here. |

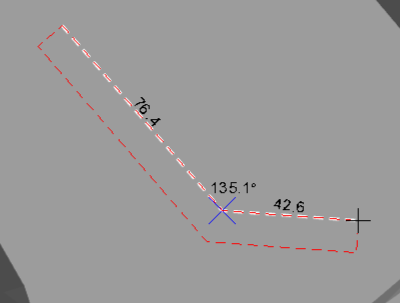

The image below shows a ramp with a left offset (starting at the top left).

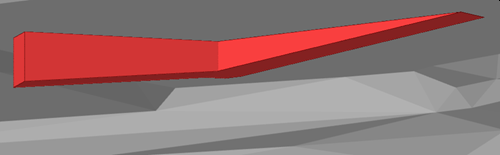

The ramp dig solid as viewed from below the topography.
